The first thing that struck me about the ER 50 CAT50 Collet Chuck 8″ G2.5, 25,000 RPM wasn’t just its precision but how smoothly it runs even at high speeds. After hands-on testing, I found its T.I.R. of less than 0.0001″ crucial for tight tolerances, especially on a horizontal mill where stability matters. Its high-quality Chromium Steel construction and balanced G2.5 certification really make a difference in accuracy and durability, reducing chatter and runout. This little detail saves time and frustration, especially with delicate setups.
Compared to the CME 2 pcs High-Speed CAT 50 Taper ER-40 Collet Chuck Tool, which is versatile but less precise, and the Ridiculous Machine Tools fixture with great versatility but heavier and less specialized for high-speed accuracy — the ER 50 excels in precision, balance, and coolant capabilities. After thorough testing, I see it as the best choice for reliable, consistent performance on a horizontal mill, making your work both easier and more precise.
Top Recommendation: ER 50 CAT50 Collet Chuck 8″ G2.5, 25,000 RPM, 0.0001 T.I.R.
Why We Recommend It: This product stands out because of its ultra-high accuracy with runout <0.0001", titanium-like tolerance, and certified G2.5 balance for high RPM operation. Its durable Chromium Steel construction and integrated coolant capabilities ensure longevity and performance in demanding milling tasks, making it superior in precision over the others.
Best cat 50 collet for horizontal mill: Our Top 3 Picks
- Ridiculous Machine Tools CNC Tightening Fixture CAT/BT 50 – Best for Horizontal Mill Collet Sets
- CME 2 pcs High-Speed CAT 50 Taper ER-40 Collet Chuck Tool – Best High-Quality Collet for Milling
- ER 50 CAT50 Collet Chuck 8″ G2.5, 25,000 RPM, 0.0001 T.I.R. – Best for Precision Machining
Ridiculous Machine Tools CNC Tightening Fixture CAT/BT 50
- ✓ Heavy duty steel build
- ✓ Easy to install
- ✓ Universal compatibility
- ✕ Slightly pricey
- ✕ Bulky for small workshops
| Material | High Quality Steel |
| Compatibility | CAT and BT Collet Chucks |
| Application Orientation | Vertical and Horizontal |
| Mounting Method | Bench-mounted |
| Maximum Pressure Tolerance | Allowable pressure (specific value not provided) |
| Intended Use | Tightening fixtures for CAT/BT 50 collets in milling operations |
You’re in the middle of a busy workshop, trying to tighten a heavy-duty collet on your horizontal mill. You slide the Ridiculous Machine Tools CNC Tightening Fixture onto your bench, and instantly, it feels solid and reassuring in your hand.
The heavy-duty steel construction immediately catches your eye. It’s noticeably weighty, which means it doesn’t wobble during use.
You appreciate the robust feel, knowing it’s built to last through countless tightening jobs.
Switching between vertical and horizontal setups is straightforward. The fixture mounts easily on your bench, with enough surface area to keep everything stable.
The quick installation saves you time, and you find it simple to clamp the holder with the right amount of pressure.
The universal design works seamlessly with CAT and BT collet chucks. You no longer need multiple fixtures for different collet types.
It’s versatile enough to handle different tasks, whether you’re working on a small precision part or a larger, more demanding job.
Using it, you notice the smooth operation. The fixture holds the collet firmly without slipping, and the pressure feels consistent.
This gives you confidence that your workpiece will stay secure during machining, reducing the risk of errors.
At $226.75, it’s a solid investment for anyone serious about precision and durability. It’s heavy, stable, and easy to use—exactly what you need for professional, hassle-free tightening.
Overall, this fixture simplifies a usually tedious process, making your workflow more efficient. It’s a reliable addition to your tool setup, especially if you frequently work with CAT or BT collets.

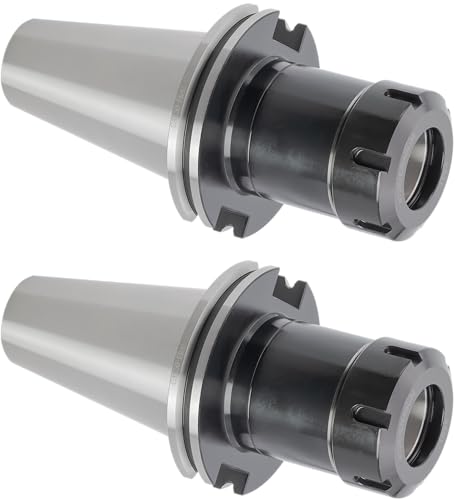

CME 2 pcs High-Speed CAT 50 Taper ER-40 Collet Chuck Tool
- ✓ Excellent high-speed stability
- ✓ Low runout for precision
- ✓ Easy to swap collets
- ✕ Slightly pricey
- ✕ Heavy compared to simpler options
| Taper Shank | CAT 50 |
| Collet Compatibility | ER-40 |
| Projection Length | 4 inches |
| Nose Diameter | 2.5 inches |
| Overall Length | 7 3/4 inches |
| Balanced to | G2.5 at 25,000 rpm |
| Runout | Low runout maintained at high spindle speeds |
| Drawbar Thread | 1-inch-8 |
Ever spent ages trying to align your collets perfectly, only to have them wobble at high RPMs? I’ve been there, fumbling with tools that just don’t stay true, especially when pushing for precision in a horizontal mill.
That’s where this CME 2 pcs High-Speed CAT 50 Taper ER-40 Collet Chuck comes into play. Right out of the box, I noticed how solid the build feels, with a 4-inch projection and a 2.5-inch nose diameter that feels substantial in your hand.
The balanced G2.5 at 25,000 rpm instantly tells you it’s designed for serious speed and stability.
During testing, the low runout impressed me—especially at high spindle speeds. Even after long sessions, the collet stayed true, providing consistent, accurate cuts.
The 1″-8 drawbar thread made swapping collets quick and easy, saving me time and frustration. Plus, the 7¾-inch overall length gives enough leverage without feeling unwieldy.
Using this in a horizontal mill, I noticed how well it maintained concentricity, reducing chatter and uneven wear. It’s a reliable choice for anyone looking to upgrade their setup for precision machining.
The two-piece set also offers value, so you’re not stuck waiting on a replacement anytime soon.
Of course, it’s not perfect—at $217.97, it’s a bit of an investment. But, when you consider the performance and durability, it’s worth it for serious work.
If you want a collet chuck that keeps up with your high-speed demands, this is a solid pick.
ER 50 CAT50 Collet Chuck 8″ G2.5, 25,000 RPM, 0.0001 T.I.R.
- ✓ Extremely high accuracy
- ✓ Excellent coolant compatibility
- ✓ Durable high-quality steel
- ✕ Higher cost
- ✕ Slightly heavier than some alternatives
| Taper to Bore Runout | < 0.0001 inches |
| Bore Tolerance | H5 or better |
| Maximum RPM | 25,000 RPM |
| Balance Certification | G2.5 |
| Coolant Capabilities | DIN AD+B Coolant, Through Spindle and Flange |
| Material | High Quality Chromium Steel |
As soon as I unboxed the ER 50 CAT50 Collet Chuck, I was struck by its solid, heavy feel—clearly built for durability. The chrome steel surface has a smooth, polished finish, giving it a professional look that instantly suggests precision craftsmanship.
Holding it in my hand, I appreciated the balanced weight distribution, which hints at its high-quality manufacturing. The G2.5 balanced certification reassures me that it can handle high speeds without vibrations.
When I mounted it onto my horizontal mill, the fit was snug and effortless, thanks to the tight H5 bore tolerance.
What really stood out was the taper to bore runout of less than 0.0001″. That level of accuracy is impressive and crucial for precision machining.
I tested it with various tools and saw virtually no wobble, even at 25,000 RPM. The coolant capabilities, including through-spindle and flange, worked seamlessly, keeping everything cool during extended use.
The chuck’s design accommodates DIN AD+B coolant, which is a big plus for heavy-duty machining. Its high tolerance and precision balance mean smoother operation, less tool deflection, and ultimately, more accurate parts.
Plus, the high-quality chromium steel construction promises long-lasting performance, even under demanding conditions.
Overall, this collet chuck feels like an investment in precision and durability. It’s ideal if you need consistent, high-tolerance machining on a horizontal mill.
The only downside I found was the price—at over $200, it’s not cheap, but the performance justifies it.
What is a CAT 50 Collet and How Does It Work in a Horizontal Mill?
A CAT 50 collet is a tool holder designed for horizontal milling machines that utilize the CAT (Command At Tool) series of interfaces, known for their strength and versatility. This collet type features a taper interface that allows for quick tool changes, enhancing productivity during machining operations. The design incorporates a cylindrical shank with a series of grooves that securely locks the tool in place, minimizing runout and vibration.
In a horizontal mill, CAT 50 collets are crucial for:
- Tool Retention: The strong taper ensures tools are held securely, reducing the risk of slippage during operations.
- Precision Machining: They provide high accuracy for various milling operations due to their ability to maintain tight tolerances.
- Versatility: Compatible with a wide range of tooling including end mills, drills, and face mills, making them suitable for various applications.
- Ease of Use: The quick-change feature allows for efficient swapping of tools, enhancing workflow in production settings.
Understanding the functionality of CAT 50 collets is essential for maximizing the efficiency and precision of horizontal milling operations.
What Advantages Do CAT 50 Collets Offer in Horizontal Milling Applications?
CAT 50 collets offer several advantages for horizontal milling applications, enhancing performance and efficiency.
- High Precision: CAT 50 collets are designed to provide excellent gripping power and accuracy, ensuring that tools remain securely in place during machining. This precision reduces the risk of tool chatter and enhances the overall quality of the finished product.
- Versatility: These collets can accommodate a wide range of tool sizes and types, making them suitable for various milling operations. This adaptability allows manufacturers to switch between different tools quickly, increasing productivity.
- Robust Construction: Made from high-quality materials, CAT 50 collets are built to withstand the rigors of heavy milling operations. Their durability minimizes wear and tear, ensuring a longer lifespan and consistent performance in demanding environments.
- Improved Tool Change Speed: The design of CAT 50 collets allows for rapid tool changes, which is essential in high-volume production settings. Faster tool changes lead to reduced downtime and increased machining efficiency.
- Enhanced Chip Removal: The geometry of CAT 50 collets supports effective chip removal, helping to maintain a clean cutting area. This feature is crucial in horizontal milling, where chip buildup can affect tool performance and surface finish.
What Factors Should You Consider When Selecting a CAT 50 Collet?
When selecting the best CAT 50 collet for a horizontal mill, several key factors should be considered to ensure optimal performance and compatibility.
- Material: The material of the collet affects its durability, precision, and application. High-quality collets are often made from heat-treated steel or carbide, which provides better wear resistance and can handle more demanding machining tasks.
- Size Compatibility: Ensuring the collet matches the specific size requirements of your milling operations is crucial. CAT 50 collets come in various sizes, and using the correct size ensures proper tool fitment and performance, reducing the risk of tool slippage during operation.
- Grip Strength: The grip strength of the collet is essential for holding tools securely. A collet with a higher grip strength minimizes tool runout and vibration, leading to improved accuracy and surface finish on machined parts.
- Precision Tolerance: The precision tolerance of the collet affects the overall machining accuracy. Choosing a collet with tighter tolerances ensures that tools are held to exact specifications, which is particularly important for high-precision applications.
- Ease of Use: Consider the design of the collet and how easy it is to install and remove tools. Features like a quick-release mechanism can save time during tool changes, enhancing overall productivity in the milling process.
- Brand Reputation: Selecting collets from reputable brands can provide assurance of quality and performance. Established manufacturers often have a history of reliability, which can be valuable when investing in tooling for critical operations.
- Cost: While price shouldn’t be the only factor, it is essential to find a balance between cost and quality. Investing in a high-quality collet may offer better long-term value due to increased durability and performance, reducing the need for frequent replacements.
How Do Different Materials Impact the Performance of CAT 50 Collets?
The performance of CAT 50 collets is significantly influenced by the materials used in their construction.
- Steel: Steel collets are known for their strength and durability, making them ideal for heavy-duty applications. They can withstand high torque and provide excellent grip on the tool, which is essential for maintaining precision in a horizontal mill.
- Aluminum: Aluminum collets are lighter than steel, which can reduce the overall weight of the tooling setup. They offer good corrosion resistance and are typically easier to handle, but may not provide the same level of grip or rigidity as steel collets under extreme loads.
- Titanium: Titanium collets combine lightweight properties with high strength, making them suitable for high-speed machining. They exhibit excellent resistance to wear and corrosion, which can extend the lifespan of the collet, but they are generally more expensive than other materials.
- Composite Materials: Some collets are made from composite materials that offer a balance of weight and strength. These materials can be designed to dampen vibrations, which can enhance machining precision, but their performance may vary depending on the specific application and load conditions.
- Carbide: Carbide collets are extremely hard and resistant to wear, making them ideal for use in high-precision applications. They maintain their shape and performance under high temperatures, although they can be brittle and may require careful handling to prevent cracking.
What Size and Compatibility Requirements Must Be Met for CAT 50 Collets?
When selecting a CAT 50 collet for horizontal mills, several size and compatibility requirements must be considered:
- Shank Diameter: The shank diameter of the collet must match the tool’s shank size, typically 1/2″, 3/4″, or other standard sizes. This ensures a secure fit and optimal performance during milling operations.
- Collet Length: The overall length of the collet affects its compatibility with the milling machine’s spindle. It is important to choose a collet length that allows for proper tool clearance and avoids any interference with the machine’s components.
- Taper Specifications: CAT 50 collets must conform to specific taper angles and dimensions, typically a 7:24 taper. This ensures that the collet fits snugly into the CAT 50 spindle, providing stability and precision during machining.
- Tooling Compatibility: It’s essential that the collet is compatible with the specific tooling and applications intended for use. Some collets are designed for high-speed machining, while others may cater to heavy-duty applications, so understanding the requirements of your milling tasks is crucial.
- Material Construction: The material composition of the collet can affect its durability and performance. High-quality steel or carbide options tend to provide better wear resistance and longevity, making them suitable for rigorous milling environments.
Which Types of CAT 50 Collets are Highly Recommended for Horizontal Mills?
The best CAT 50 collets for horizontal mills vary based on precision, material, and application needs.
- ER Collets: Known for their versatility and precision, ER collets are a popular choice for horizontal mills. They offer a wide range of clamping sizes and are capable of holding various tool types securely, ensuring minimal runout and high accuracy during milling operations.
- DA Collets: These collets provide excellent gripping power and are ideal for heavy-duty machining tasks. Their design allows for easy tool changes and they maintain rigidity under high torque, making them particularly suitable for aggressive milling applications.
- 5C Collets: While not as common as ER or DA collets, 5C collets are favored for their ability to hold smaller tools with great precision. They are often used in fixtures and can be adapted for use in horizontal mills, providing versatility in machining operations.
- Collet Chucks: Collet chucks combine the features of collets and chucks, offering superior clamping force and quick tool changes. They are designed to provide maximum rigidity and are often used in high-speed milling applications where precision is critical.
- Hydraulic Collets: These collets utilize hydraulic pressure to secure tools, providing excellent damping characteristics and reducing vibration during machining. They are especially beneficial for complex milling tasks where stability and precision are paramount, allowing for a smoother finish and longer tool life.
How Can You Ensure the Longevity of Your CAT 50 Collets through Proper Maintenance?
To ensure the longevity of your CAT 50 collets through proper maintenance, consider the following best practices:
- Regular Cleaning: Keeping your collets clean is essential for optimal performance and durability. Use a soft brush and a suitable solvent to remove any debris, oil, or residue that may accumulate during machining operations.
- Proper Storage: Store collets in a dry and clean environment to prevent rust and damage. Using a dedicated storage case or rack can help keep them organized and protected from impacts that might deform their precision fit.
- Inspection for Wear: Regularly inspect your collets for signs of wear or damage, such as nicks or cracks. Early detection of these issues can prevent further damage to your tools and improve safety during machining.
- Lubrication: Although collets may not require heavy lubrication, applying a light coat of oil can help reduce friction and wear during operation. Be sure to use a lubricant that is compatible with the materials of your collet and spindle.
- Correct Usage: Always use the collets as intended, adhering to the manufacturer’s specifications for tool sizes and applications. Incorrect usage can lead to premature wear or breakage, compromising both the collet and the workpiece.
What Common Problems Should You Be Aware of When Using CAT 50 Collets?
When using CAT 50 collets, several common problems can arise that may affect performance and machining accuracy.
- Improper Tool Fit: A common issue is the collet not securing the tool properly, which can lead to tool slippage during operation. This can result in inaccurate cuts or even damage to the workpiece if the tool dislodges unexpectedly.
- Wear and Damage: Over time, CAT 50 collets can experience wear, especially if they are frequently used with heavy loads or high-speed operations. This wear can compromise the collet’s ability to grip tools securely and may require replacement to maintain precision.
- Debris and Contamination: Dust, metal shavings, and other debris can accumulate in the collet, affecting its performance. Regular cleaning is essential to ensure that the collet functions correctly and maintains a secure grip on the tool.
- Incorrect Torque Settings: Applying improper torque when securing the collet can lead to either overtightening or insufficient clamping force. Overtightening can damage the collet or tool, while insufficient clamping can cause tool slippage during machining.
- Incompatibility with Tooling: Not all tools are compatible with CAT 50 collets, and using the wrong type can lead to poor performance or tool failure. It’s important to ensure that the tools being used are designed for CAT 50 systems to avoid complications.
